Fleet overview

Our own fleet of aircraft includes six freighter aircraft B747-400Fs ‘Queen of the Skies’, and passenger aircraft A330-200 & B757-200

The Boeing 747 -400F is a freighter aircraft which can hold up to 24,115 cubic feet (683 m³) of cargo and has a maximum payload of 108 metric tons.

The A330-200 is our premium passenger aircraft which flies business executives, military troops, holiday goers, and sports team across the globe.

With all the latest inflight entertainment and digital service offerings, the Boeing 757-200 offers our customers a personalized, comfortable and exclusive journey to their preferred destination.

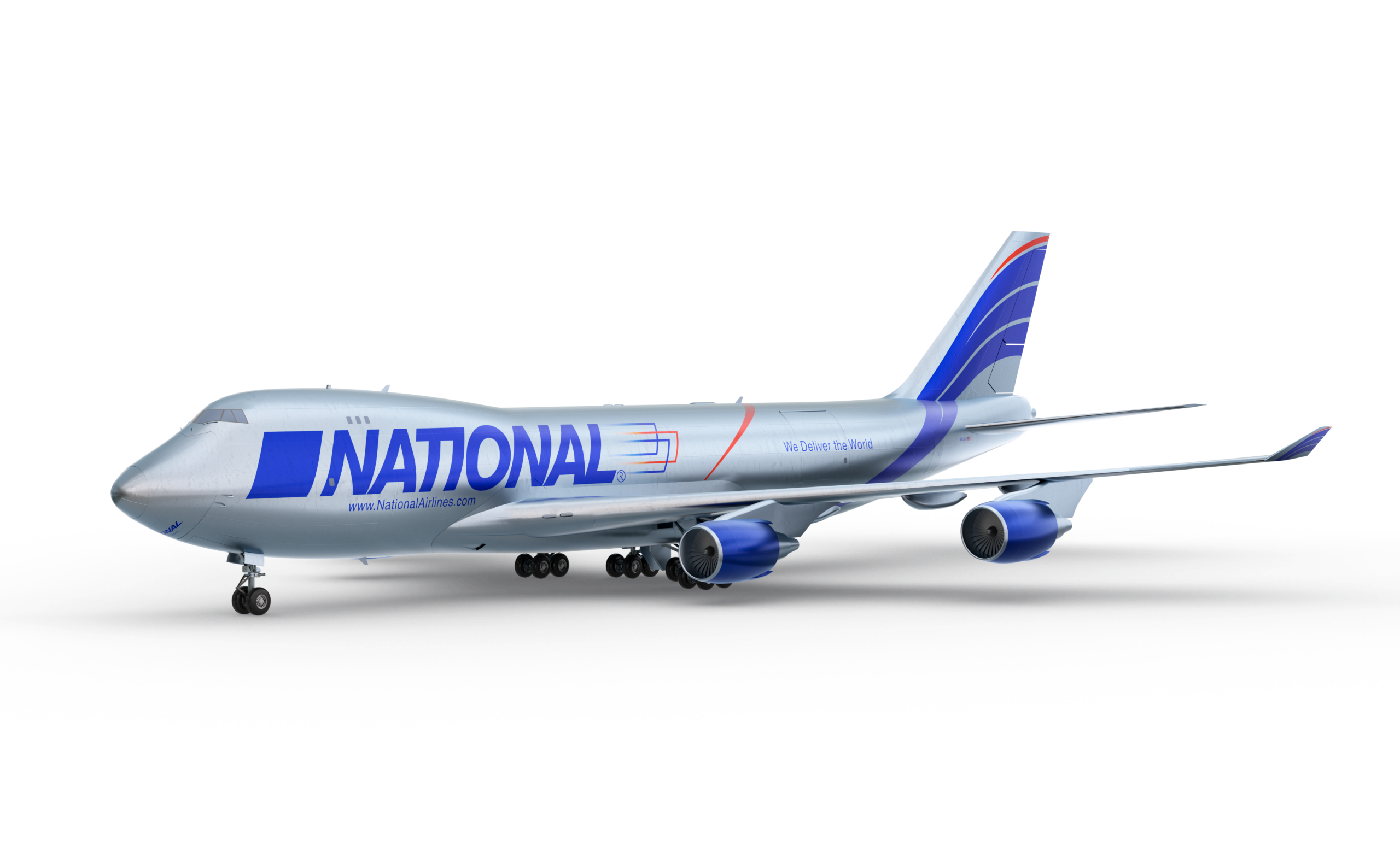

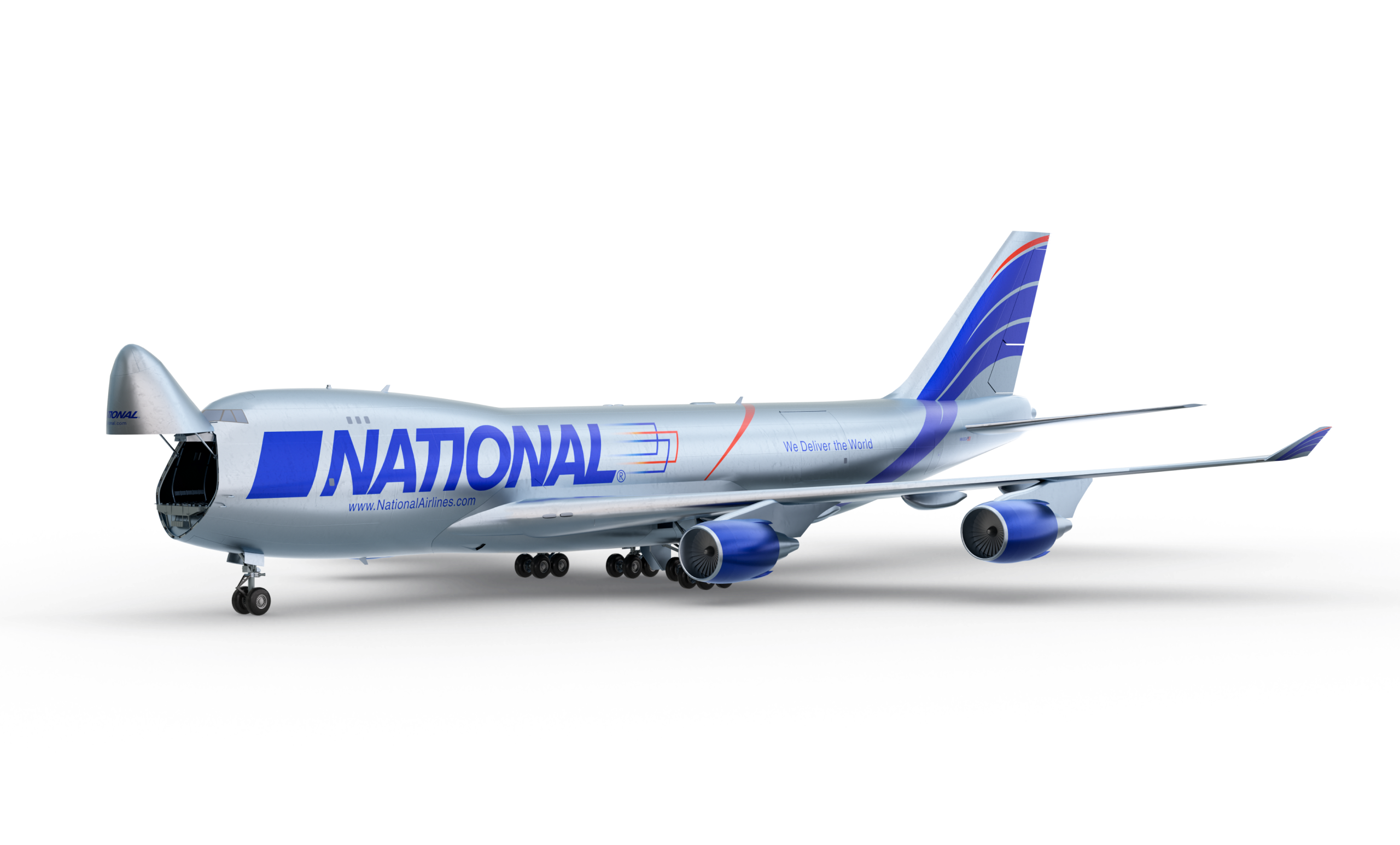

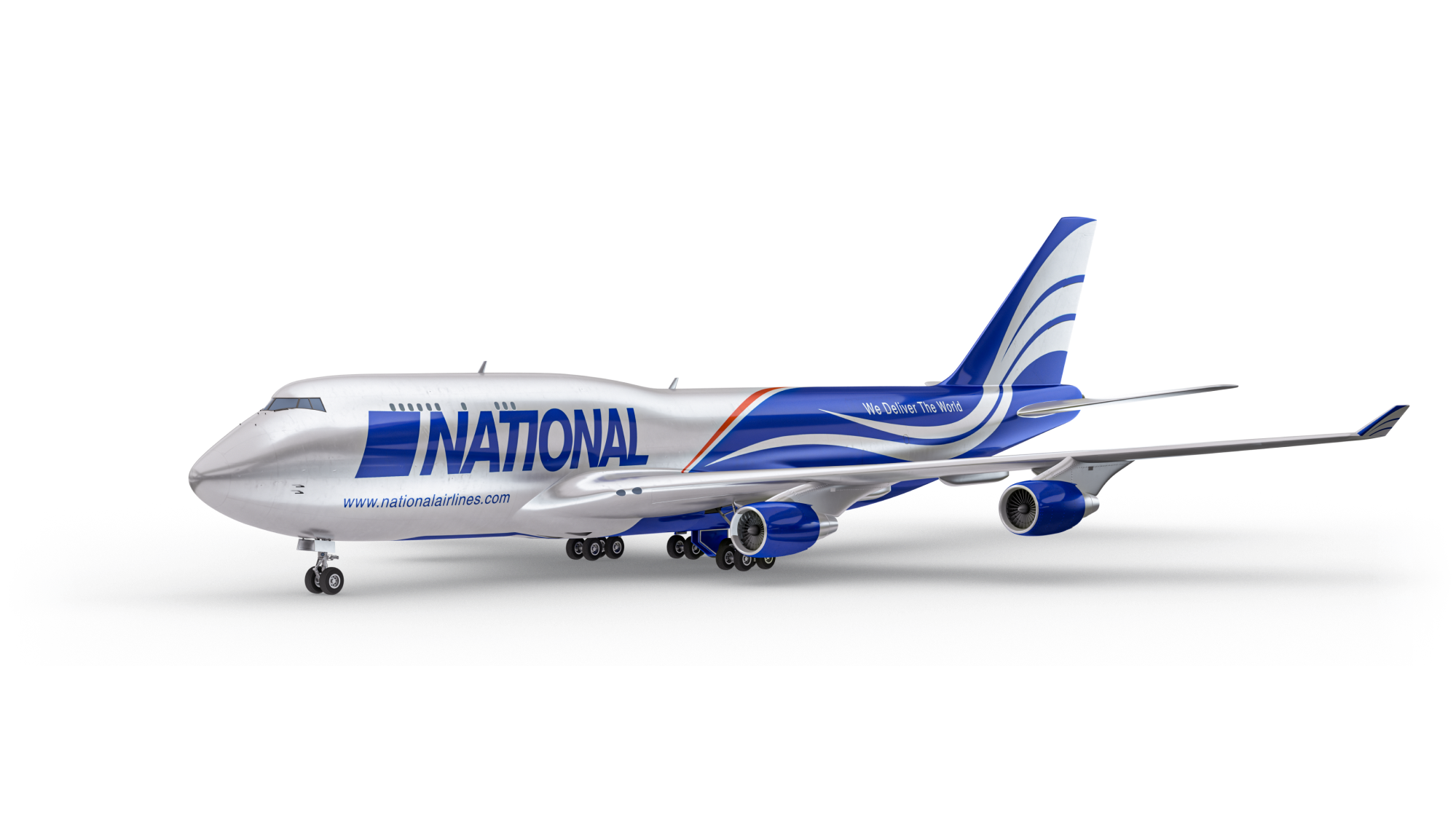

Boeing 747-400ERF/F Boeing 747-400ERF/F

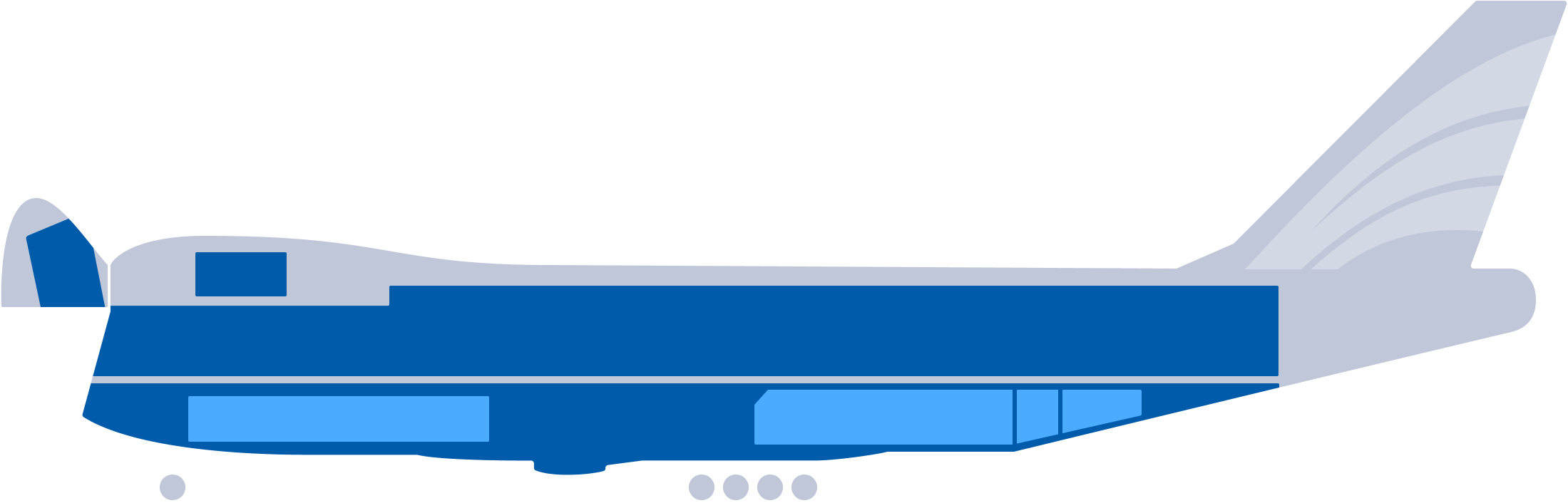

Click to open the nose

N663CA N537CA
Height

63 ft 8 in
19.3 m

Length

231 ft 10 in
70.66 m

Wingspan

211 ft 5 in
64.44 m

Max Payload

125 metric tons

The Boeing 747-400ERF (Extended Range Freighter) is the freighter version of -400ER launched in 2001. The -400ER model is a significant aircraft type achieving maximum weight via structural modification and modified landing gear. The B747-400ERF is very similar to the B747-400F aircraft type except for increased extended range capability which makes it a very preferred freighter aircraft to transport specialized cargo over longer distances with ease.
In comparison with the standard B747-400 freighter the -400ERF has a range of 5,700 miles (9,200 kms) with maximum payload. This accounts for over 600 miles (970 kms) farther than the B747-400F version. The 747-400ERF has a maximum take-off weight of 910,000 pounds (412,769 kg) and a maximum gross payload of over 120 metric tons. The extended range offers airlines additional capabilities, which is vital for longer-distance transportation. The ERF aircraft type has a strengthened wide fuselage and a maximum fuel capacity of 216,846 litres.
Featuring a nose door and a large side door, the aircraft is a logical choice globally for sophisticated cargo movements across long distances. The nose door loading capability, a unique feature of this type of aircraft gives airline companies the capability to move customer shipment of any length, which is not possible on the B777 freighter types. The additional freighter capacity helps carry lengthy, odd-sized, bulk, and delicate cargo across the globe. This special lengthy piece loading capability makes the aircraft a vital freighter provider for oil & gas, manufacturing, automobile, and other heavy industries. This aircraft is also particularly suitable for pharmaceuticals, seafood, perishables, and other cold chain shipments.
Recently, two B747-400Fs (N663CA & N537CA) aircraft joined the National Airlines fleet as the 7th and 8th freighter. With this addition, National is better equipped to offer specialized charter cargo capabilities to various new industries and customer groups.

enter-plan

Upper Cabin

Main deck cargo compartment

Nose cargo door

FWD Cargo Hold

AFT Cargo Hold

Bulk Hold

Upper Cabin

Main deck cargo compartment

Nose cargo door

FWD Cargo Hold

AFT Cargo Hold

Bulk Hold

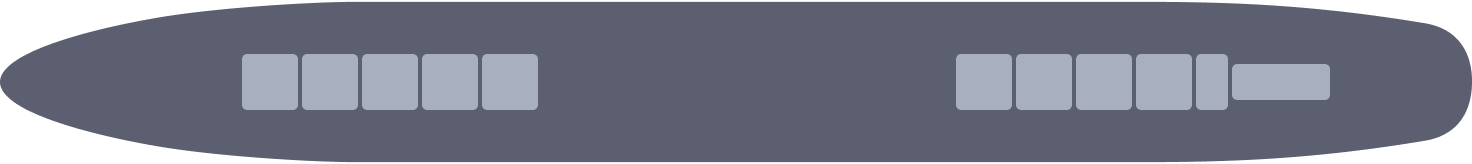

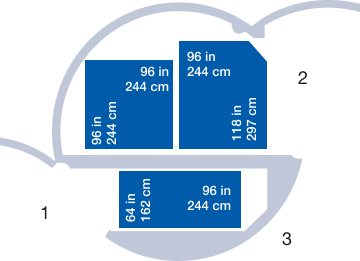

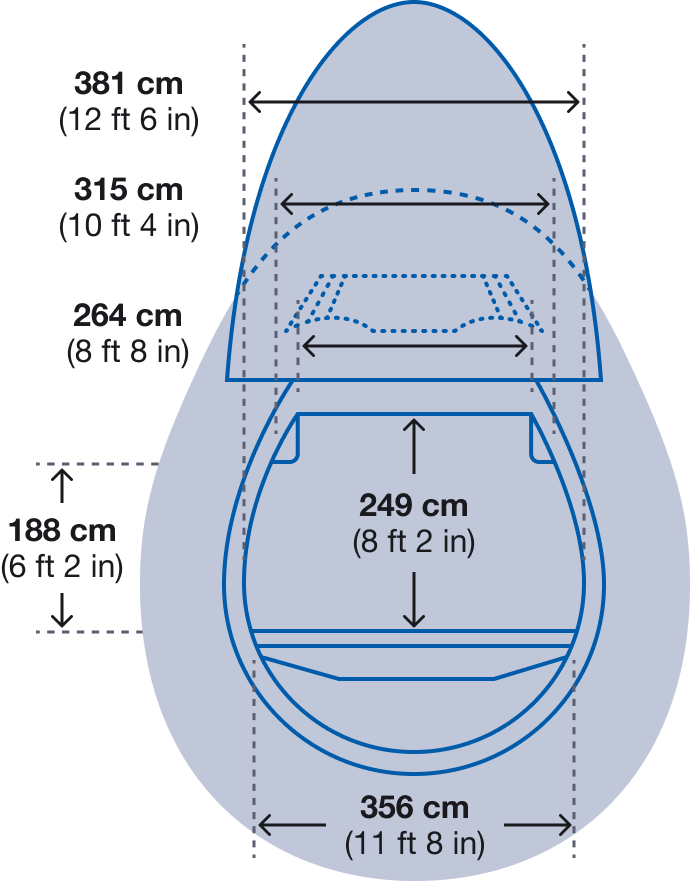

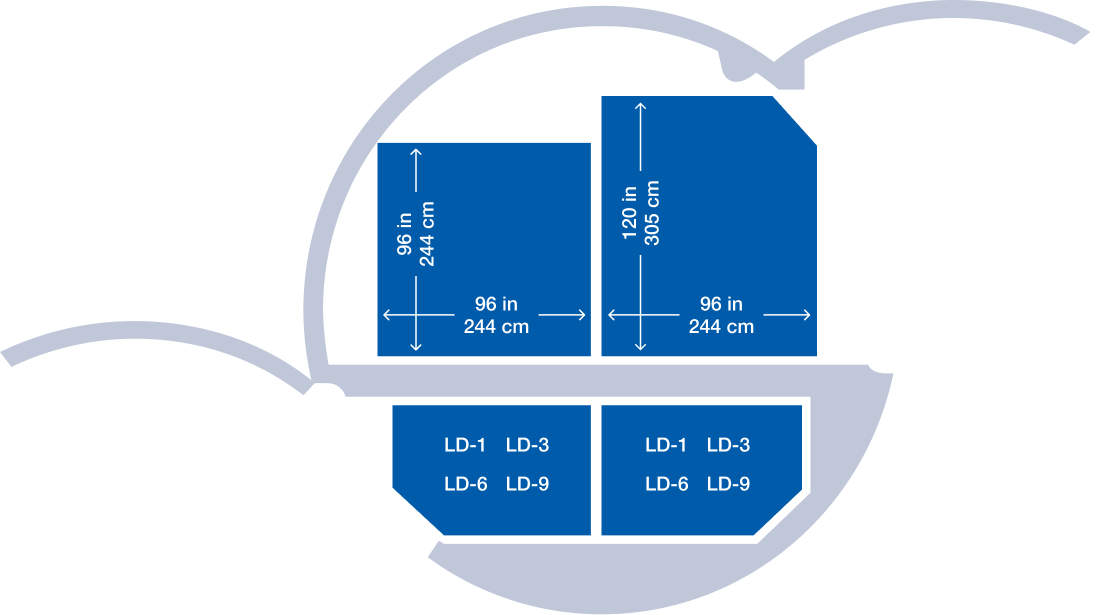

Cross Section Showing Main Deck and Lower Compartment

compartment compartment-mob

1 - Lower Deck
Cargo Door (RH)
Forward and Aft
Width: 106 in (2.7 m)
Height: 67 in (1.7 m)

2 - Main Deck
Cargo Door (LH)
Clear Opening
Width: 141 in (3.6 m)
Height: 120 in (3.1 m)

3 - Lower lobe pallet
415 ft2 (11.5 m2)

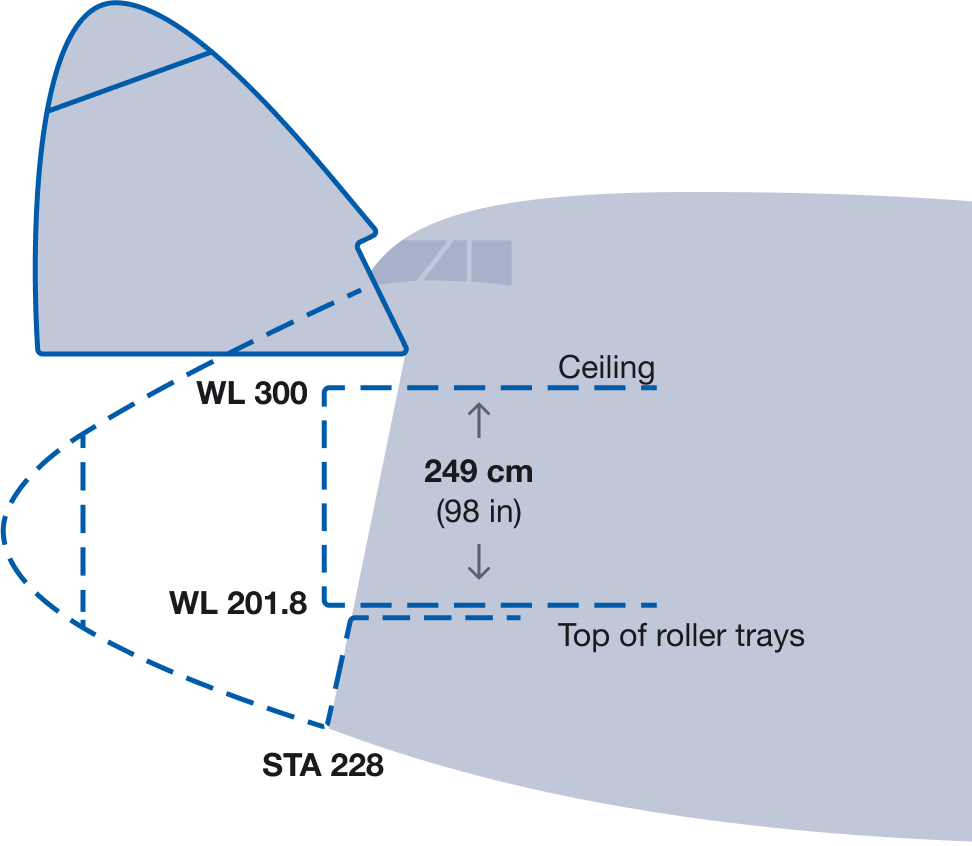

Nose cargo door

img img

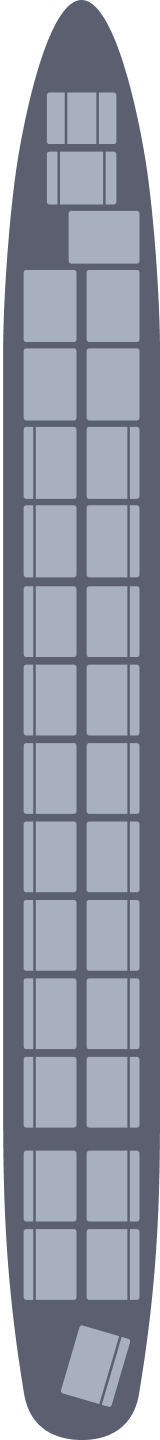

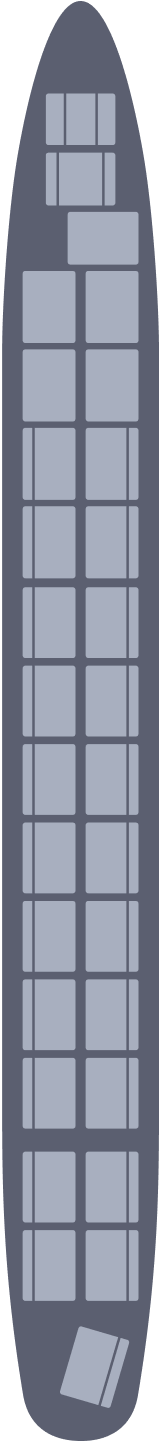

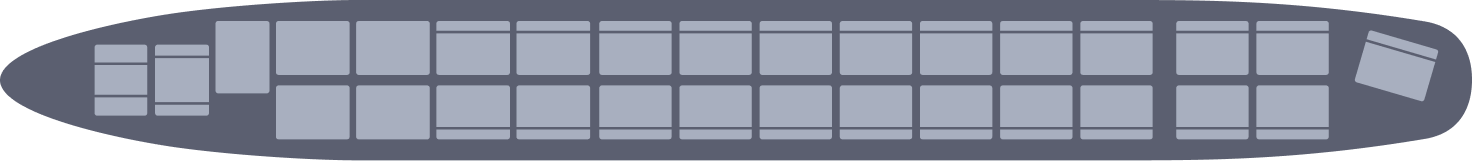

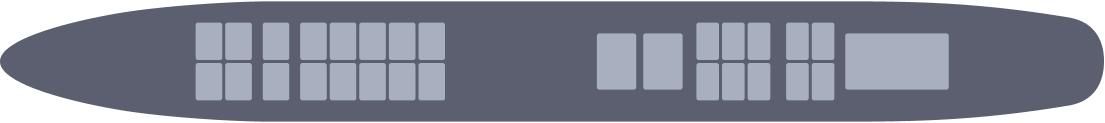

Pallet configuration

Main Deck

img img

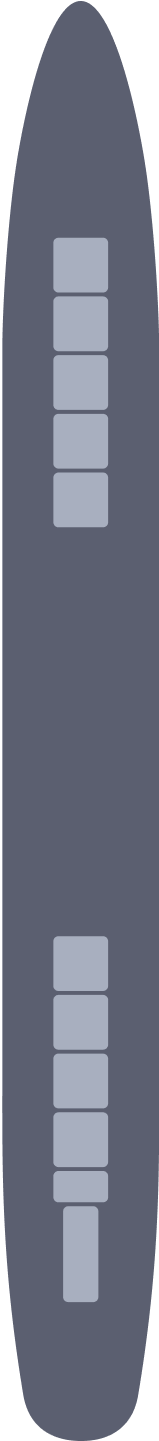

Lower Deck

img img
Bulk Hold

852

Main Deck

Pallet Type

Base Dimensions

Max Loadable

PMC

125x96 in

30

PAG / PAJ

125x88 in

30

PRA (16 ft)

196x96 in

16

PGA / PGF

238.5x96 in

11

PJ (40 ft. pallet)

5

PYB

55x96 in

02

463L – Military pallet

108x88 in

33

Lower Deck

Pallet Type

FWD

AFT

PMC

5

4

PAG / PAJ

5

4

PRA (16 ft)

0

0

PAG / PGA

0

0

PYB

0

0

PLA

0

1

463L – Military pallet

5

4

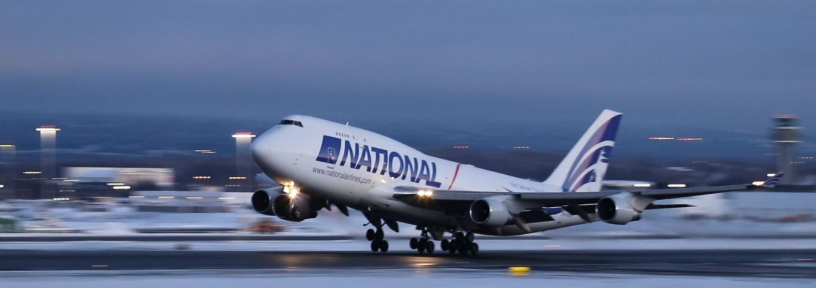

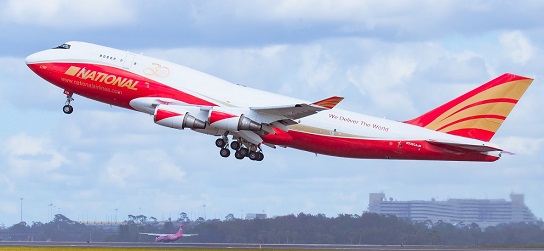

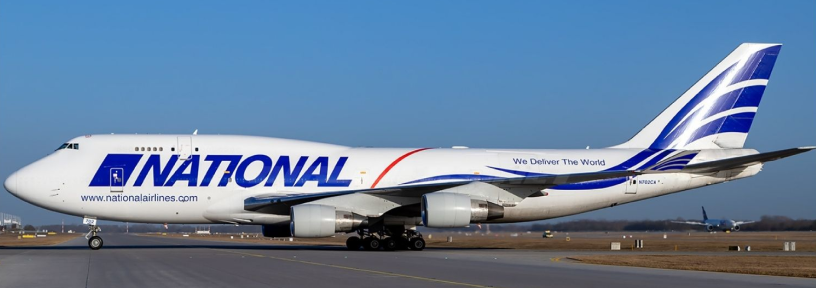

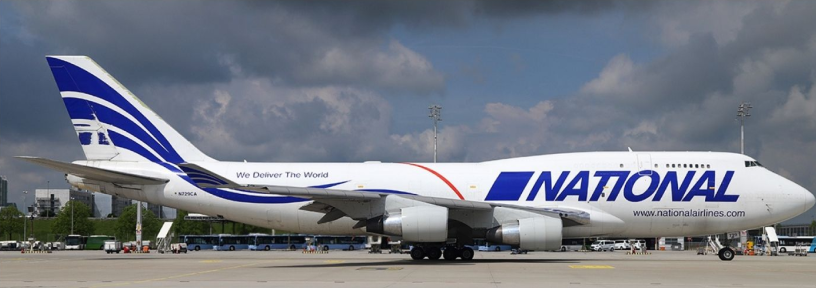

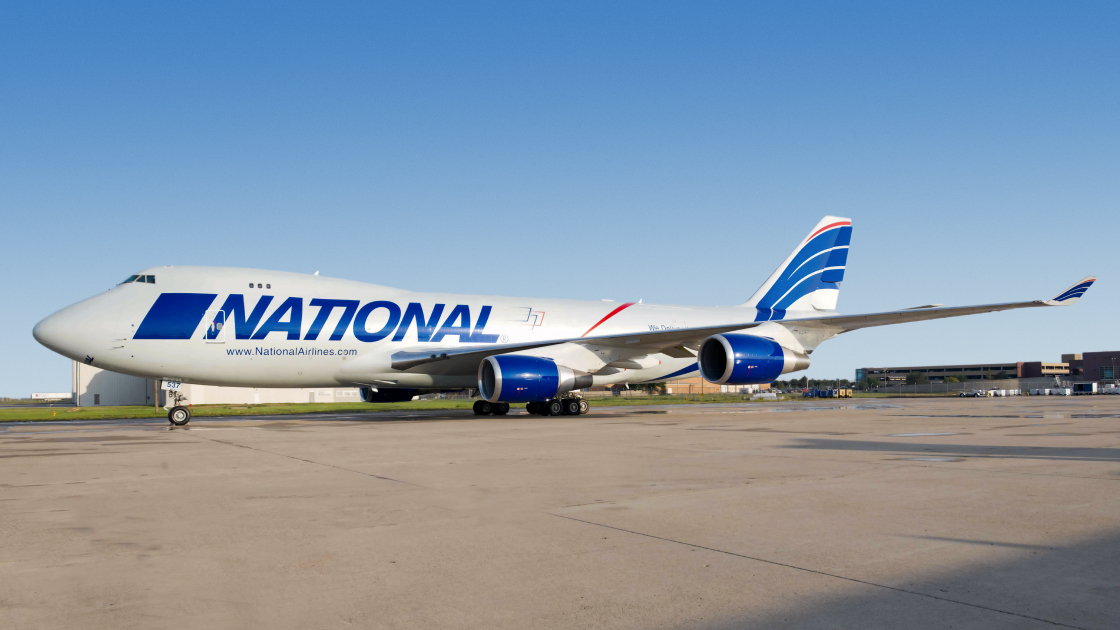

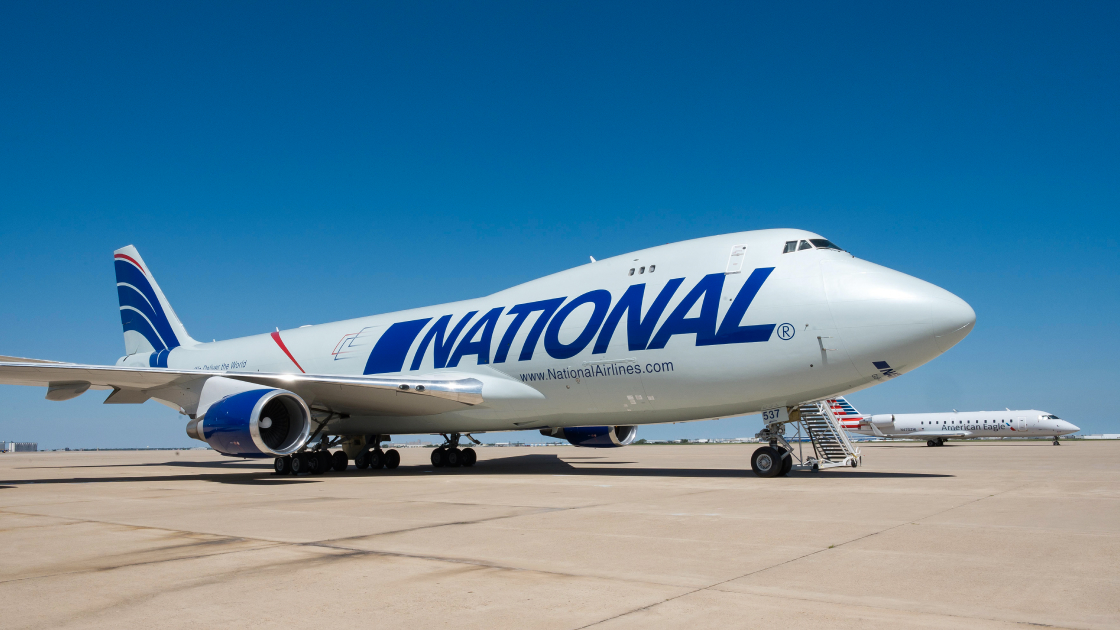

Boeing 747-400F
N702CA N952CA N756CA N919CA N729CA N936CA
Height

63 ft 8 in
19.41 m

Length

231 ft 10 in
70.6 m

Wingspan

211 ft 5 in
64.44 m

Max Payload

24,115 cubic feet (683 m3)
108 gross metric tons

From emergency humanitarian missions to cargo charters, the B747-400F – 'Queen of the Skies', leads National’s missions across the globe. National Airlines has six B747-400BCF Aircraft in its expanding fleet.
The B747 is a wide-body airliner developed by Boeing in the United States. Powered by JT9D turbofan engines, the B747s now offer an improved choice of PW4000, GE CF6 & the RB 211 Rolls Royce engines.
The B747-400BCF can carry a total of 19,916 ft3 on the main deck and 4,199 ft3 on the lower deck. The ft3 may vary depending on the FAK (Freight All Kinds) on board. From freight forwarding to cargo charters.

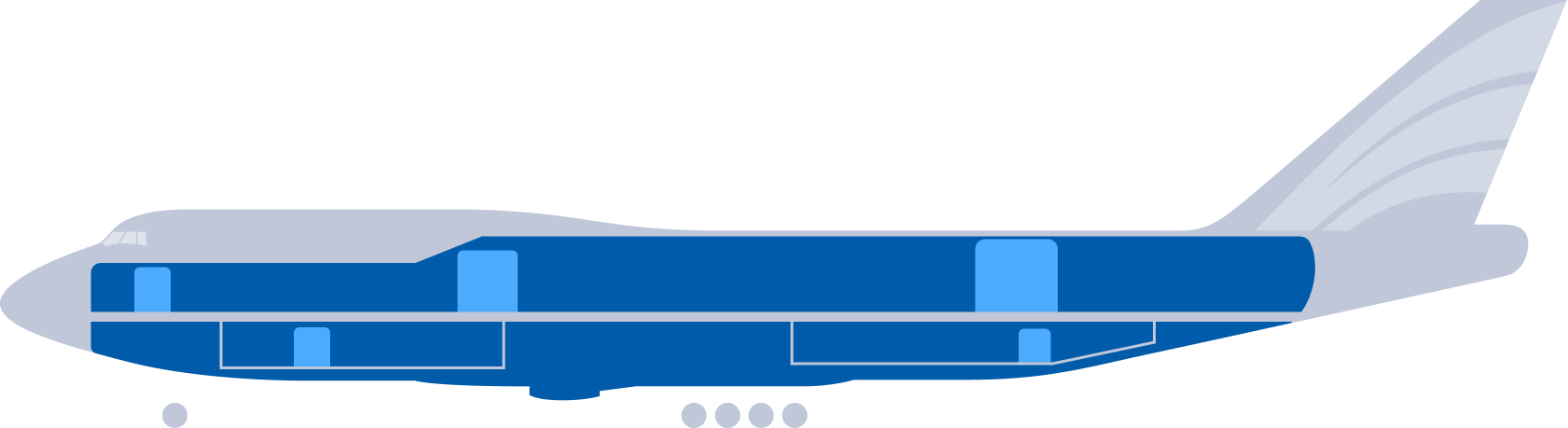

enter-plan

Additional pallet position

Two additional 120-in (3.1 m)
high pallet positions

Two additional LD-1/LD-3 containers
in some mixed-load combinations

Two additional LD-1/LD-3 containers
with reduced bulk volume

Additional pallet position

Two additional 120-in (3.1 m)
high pallet positions

Two additional LD-1/LD-3 containers
in some mixed-load combinations

Two additional LD-1/LD-3 containers
with reduced bulk volume

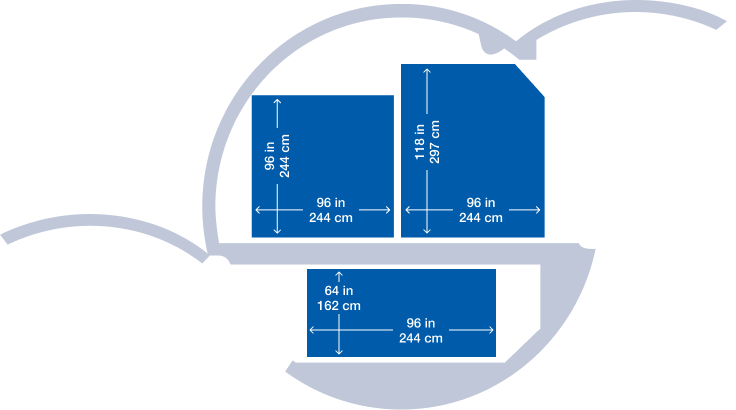

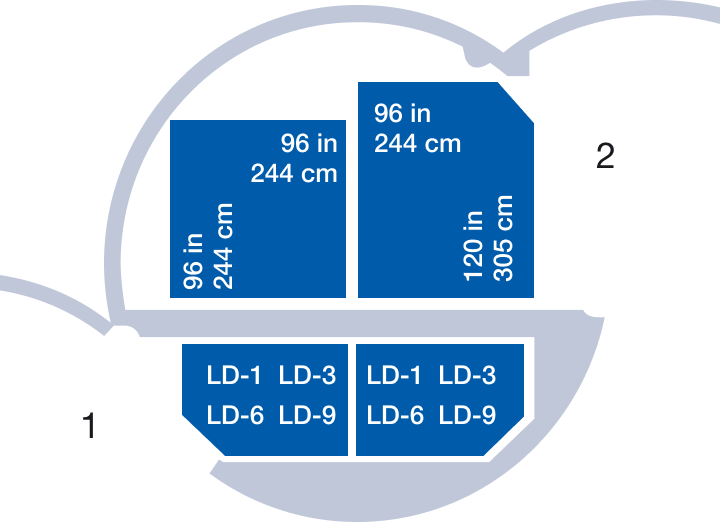

Cross Section Showing Main Deck and Lower Compartment

compartment compartment-mob

1 - Lower Deck
Cargo Door (RH)
Forward and Aft
Width: 110 in (2.8 m)
Height: 66 in (1.7 m)

2 - Main Deck
Cargo Door (LH)
Clear Opening
Width: 134 in (3.4 m)
Height: 120 in (3.1 m)

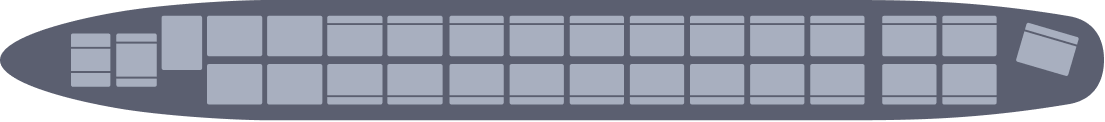

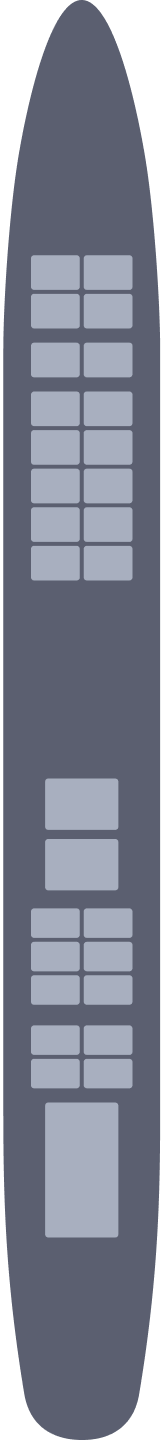

Pallet configuration

Main Deck

img img

Lower Deck

img img
Bulk Hold

Main – 860 Kgs
Lower – 460 Kgs

Total Volume

14.7 m3

Main Deck

Pallet Type

Base Dimensions

Max Loadable

PMC

125x96 in

30

PAG / PAJ

125x88 in

30

PRA (16 ft)

196x96 in

16

PGA / PGF

238.5x96 in

11

PYB

55x96 in

02

463L – Military pallet

108x88 in

33

Lower Deck

Pallet Type

FWD

AFT

PMC

5

4

PAG / PAJ

5

4

PRA (16 ft)

0

0

PAG / PGA

0

0

PYB

0

0

PLA

0

1

463L – Military pallet

5

4

N702CA


N756CA


N729CA


N952CA

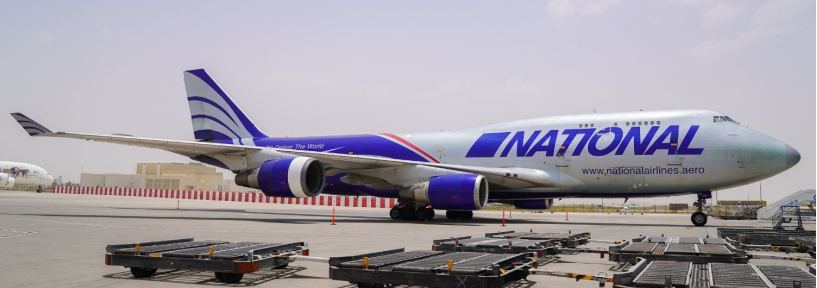

N919CA

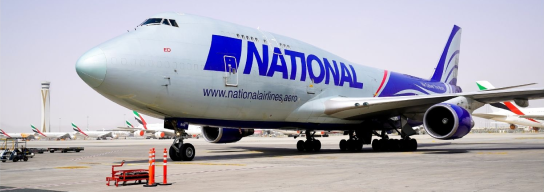

N936CA

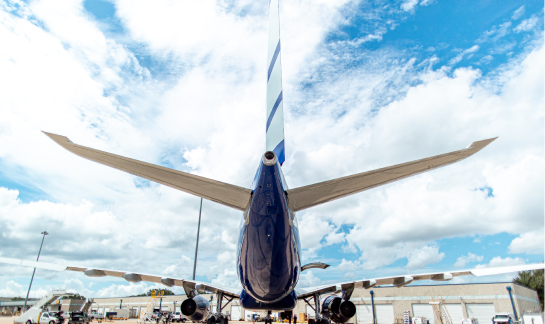

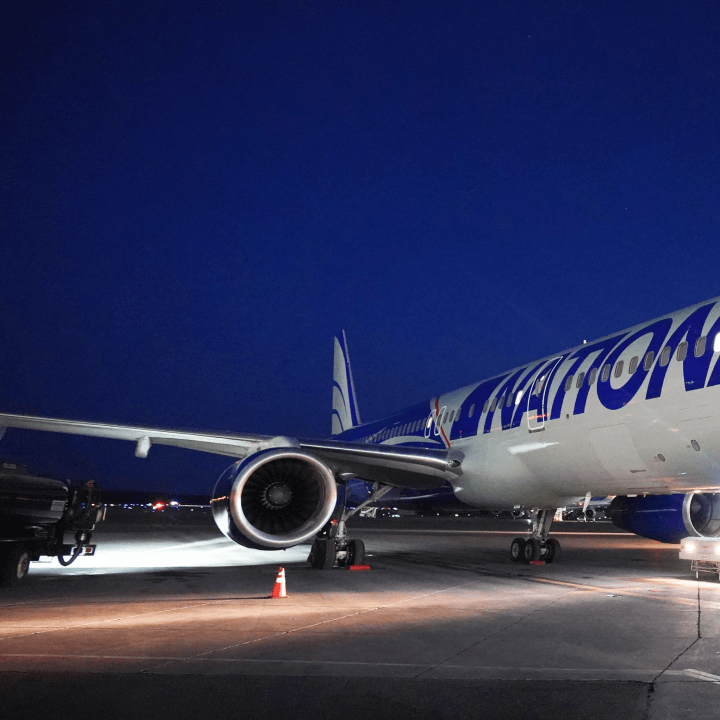

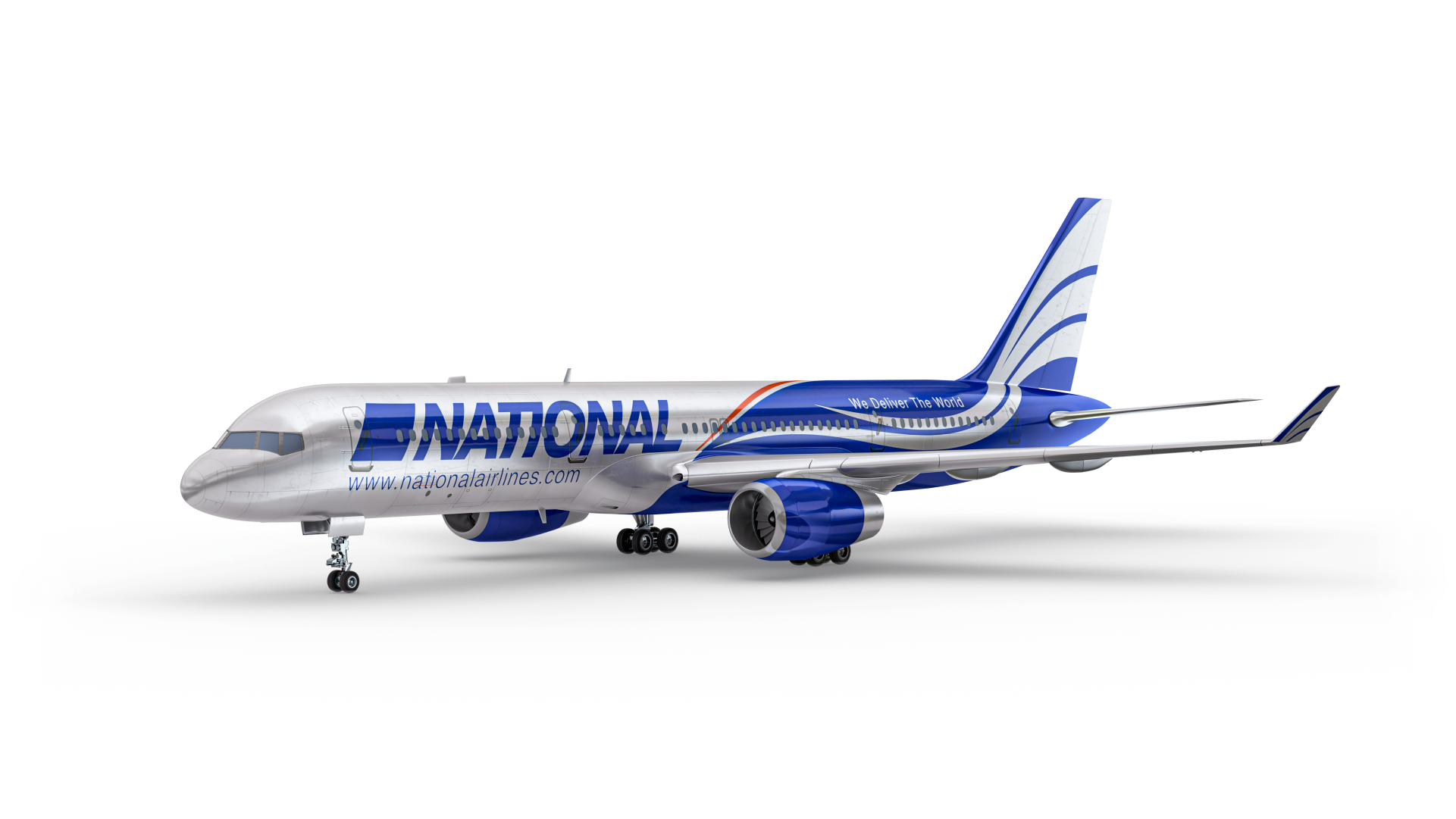

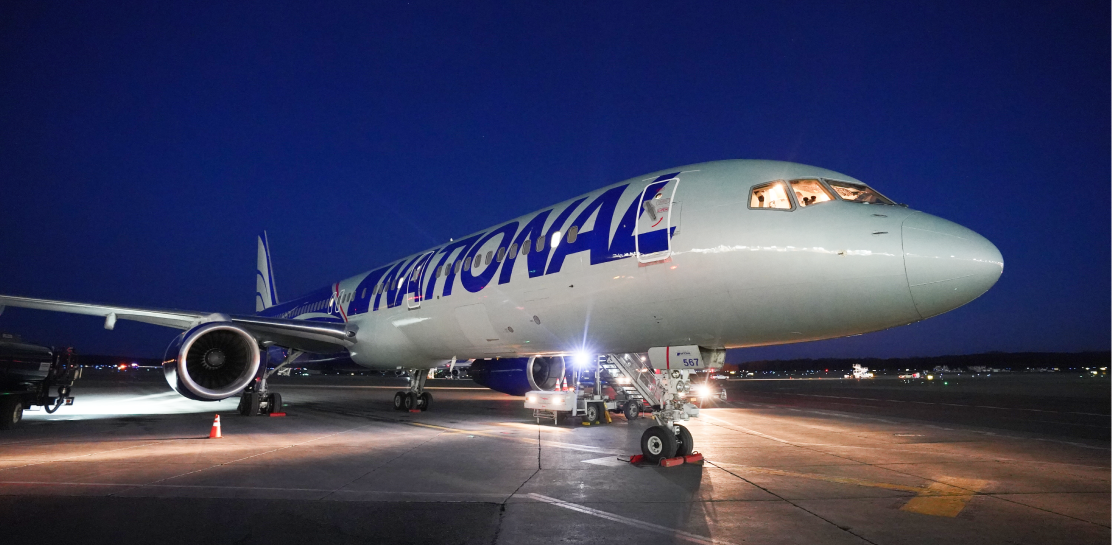

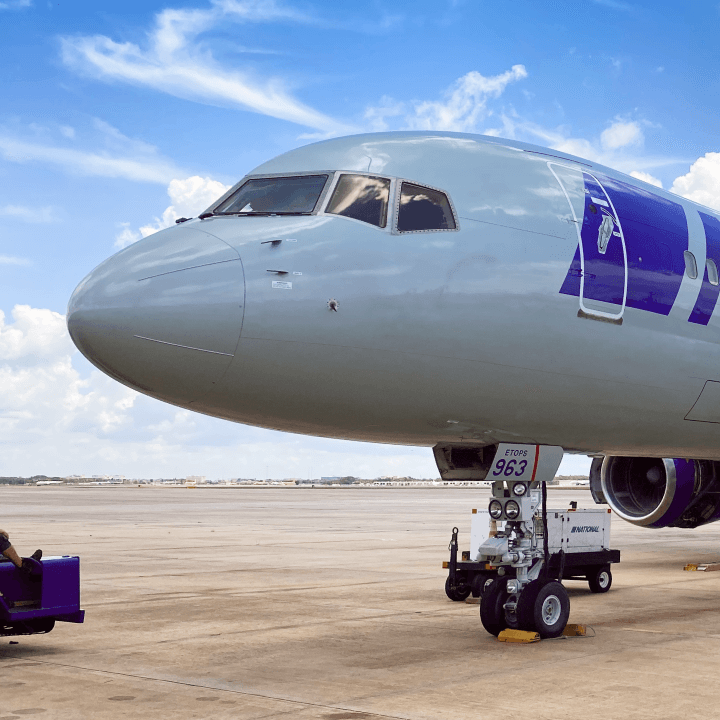

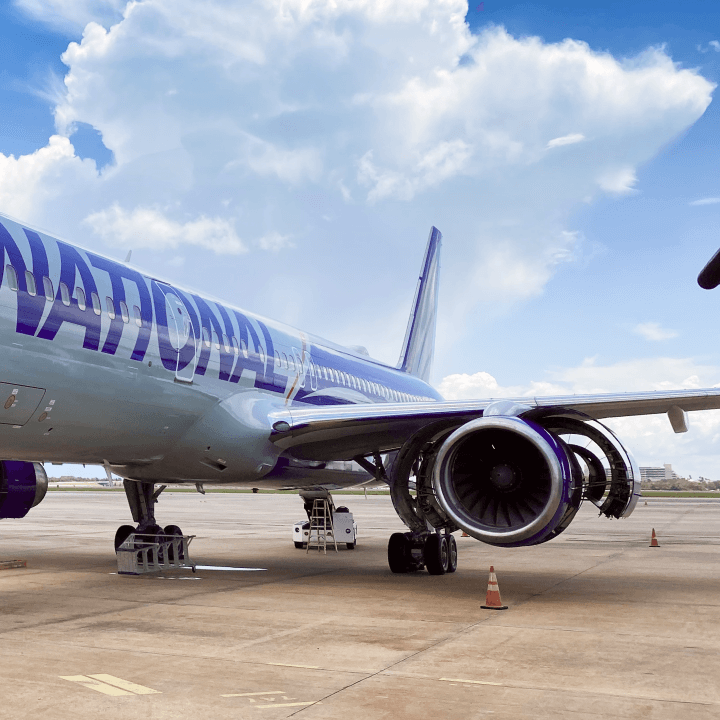

Boeing 757-200 N963CA

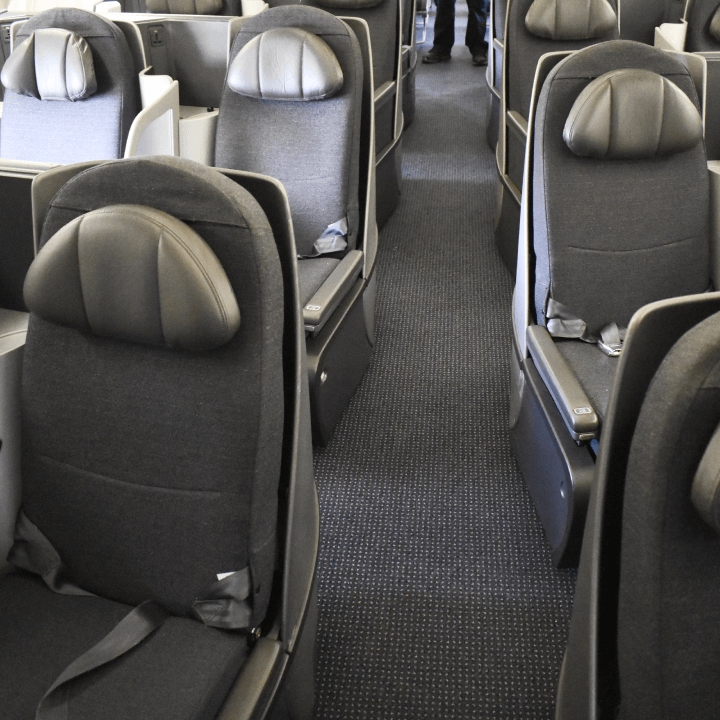

The latest B757-200 (N963CA) premium passenger aircraft is a customized VIP experience in the sky.

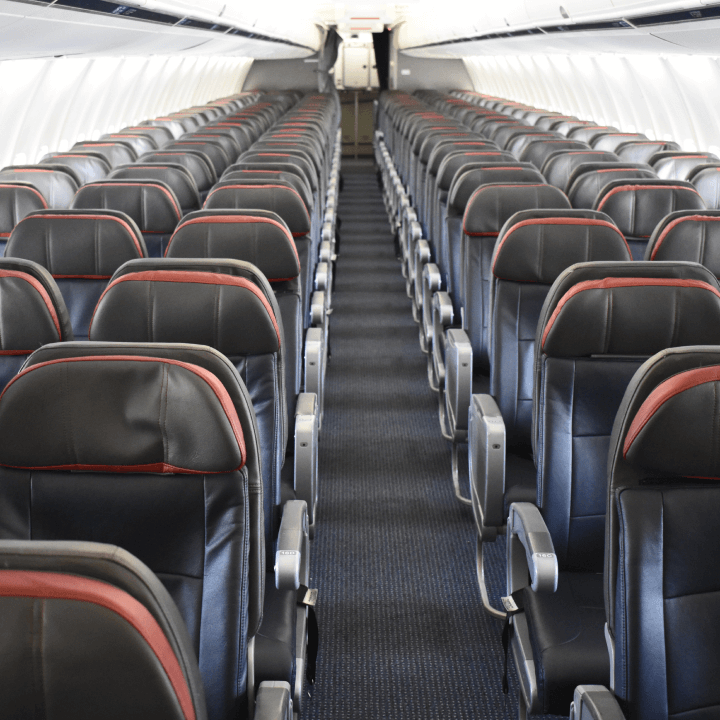

The National Airlines passenger aircraft has 16 First Class seats and 160 Economy seats taking it to a total 176 seats. With all the latest inflight entertainment and digital service offerings, the B757-200 offers our customers a personalized, comfortable and exclusive journey to their preferred destination.

Our well curated charter booking offerings, global operational hubs, customer service executive teams and a qualified team of aircraft crew makes sure all your specific demands are delivered with global standards.

configuration-plan
configuration-plan

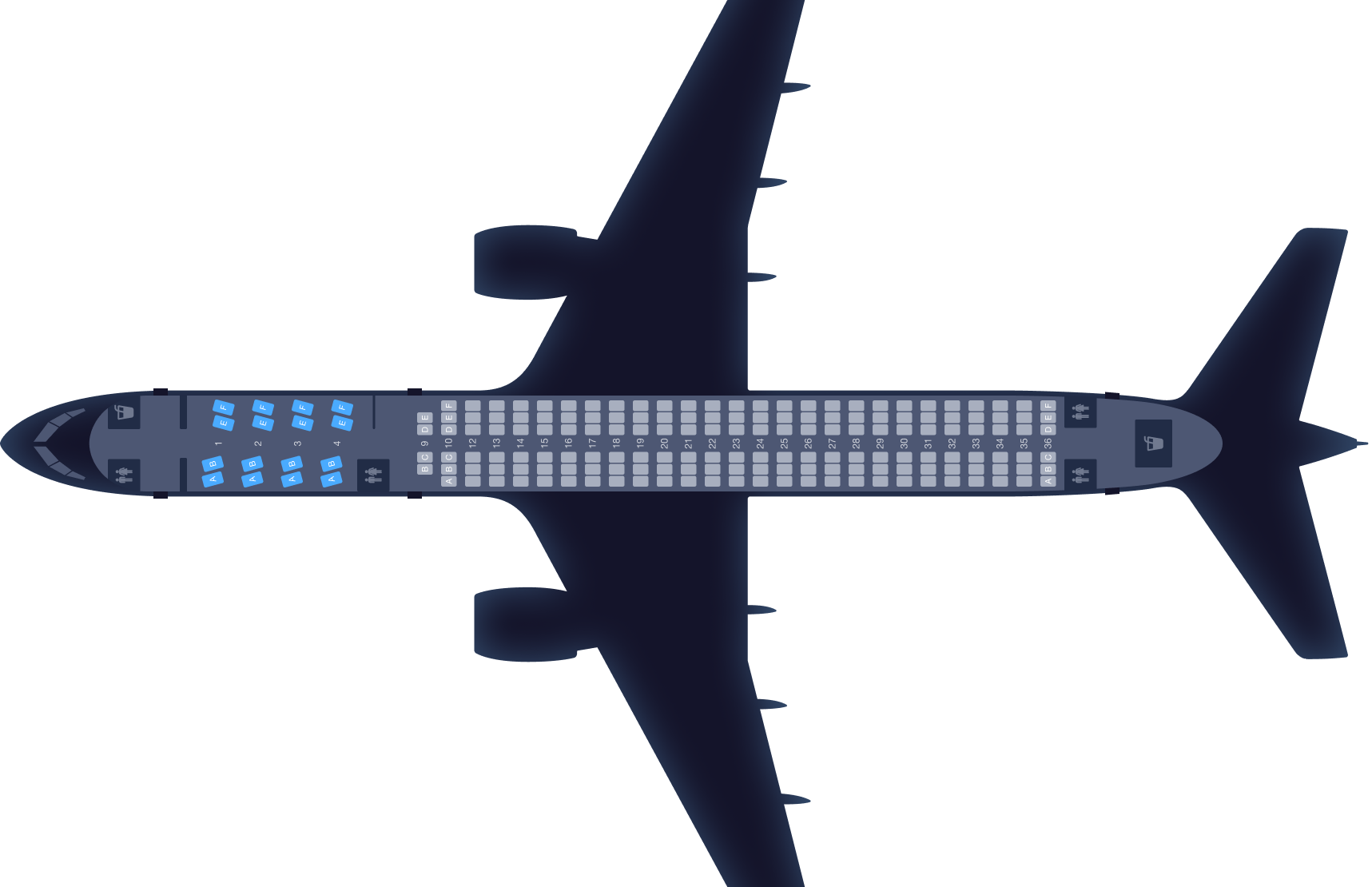

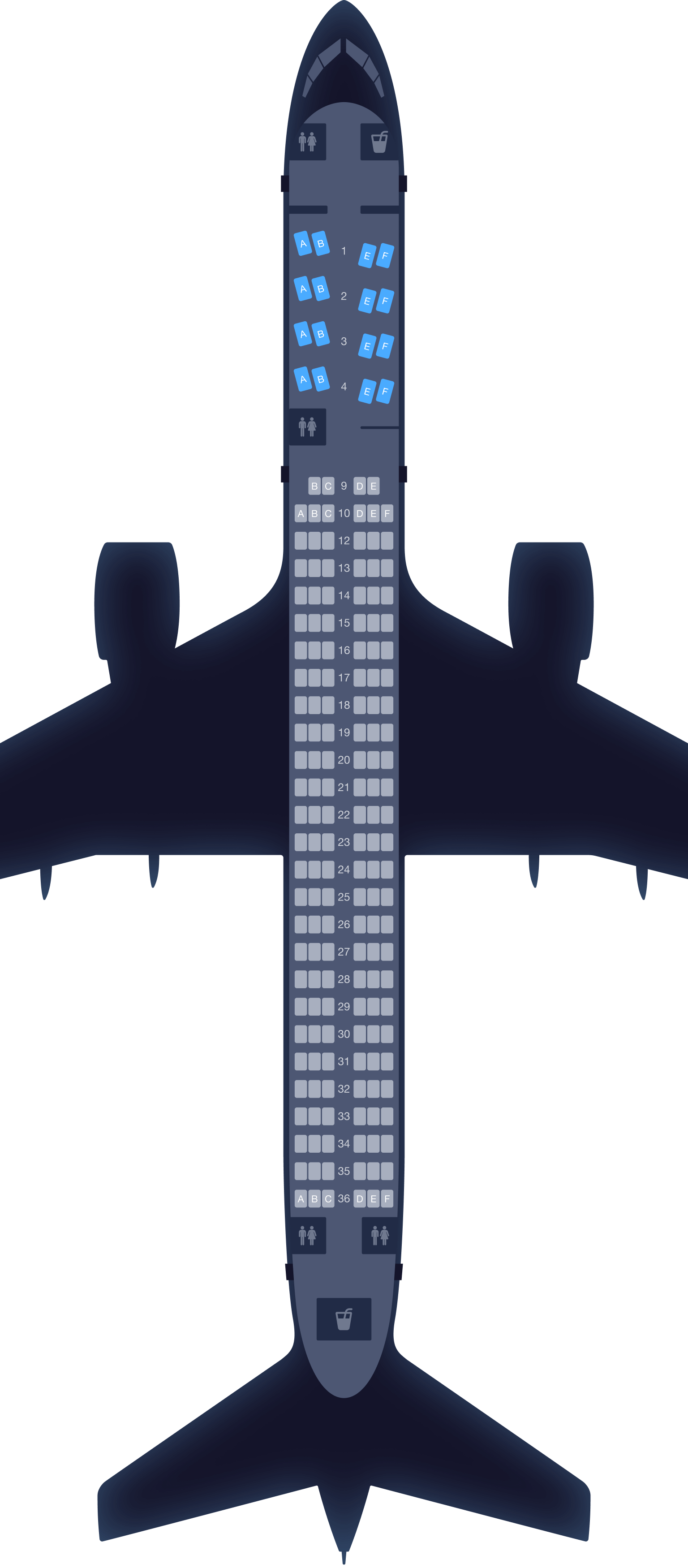

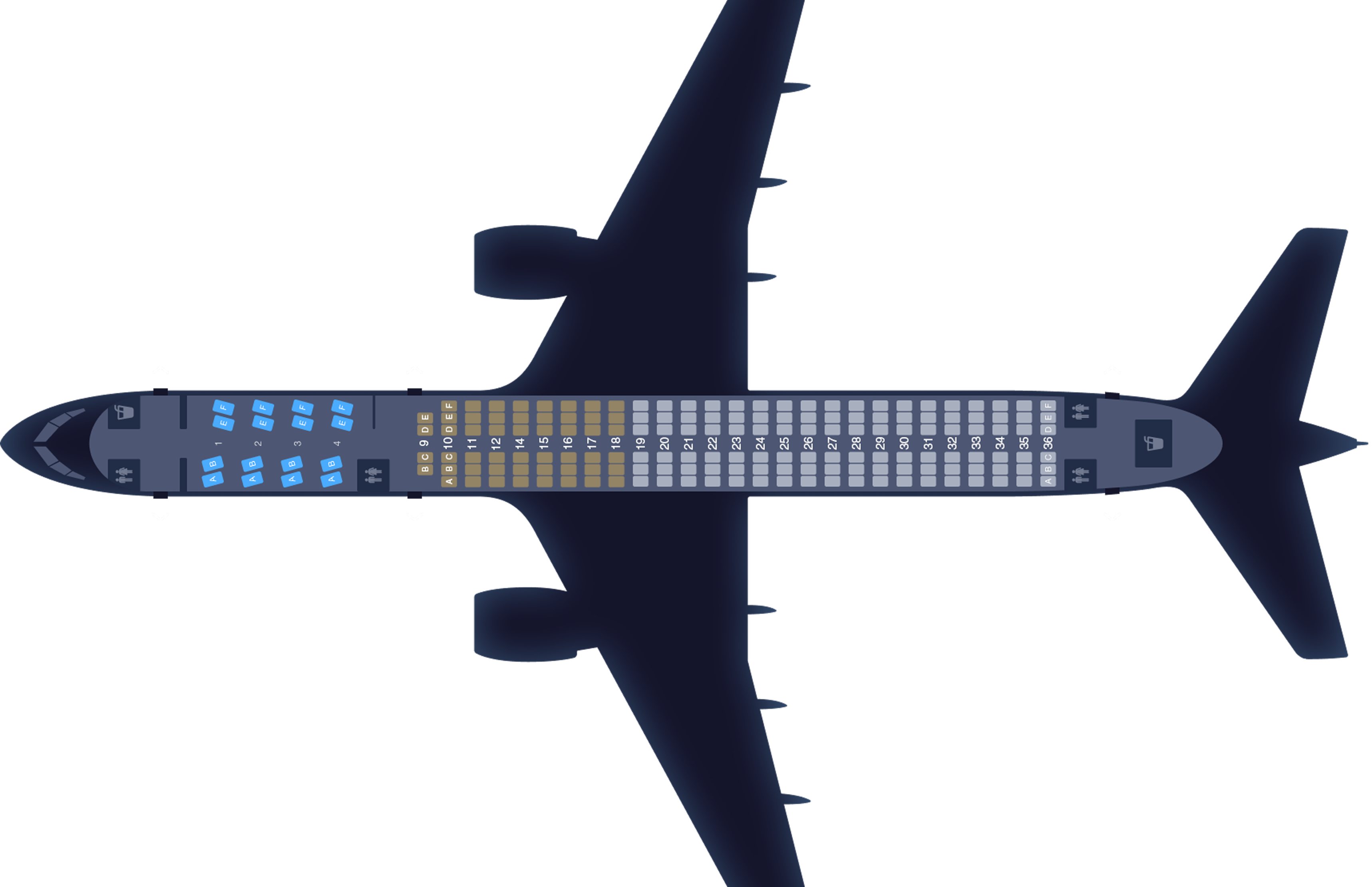

Seats configuration

Capacity

176 Seats

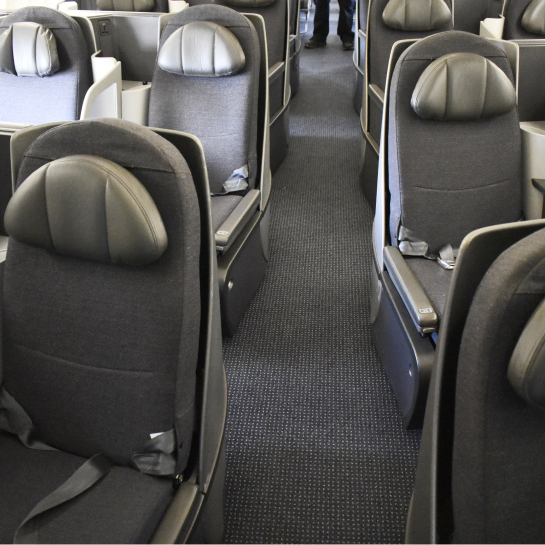

  Business: 16 (58" Pitch - 2x2)
  Premium Economy: 46 (36" - 38" Pitch - 3x3)
  Economy: 114 (32" Pitch - 3x3)
Seat Layout

*Seat capacity is subject to crew rest
requirement based on length of flight

slider-img
slider-img
slider-img
slider-img
slider-img
slider-img

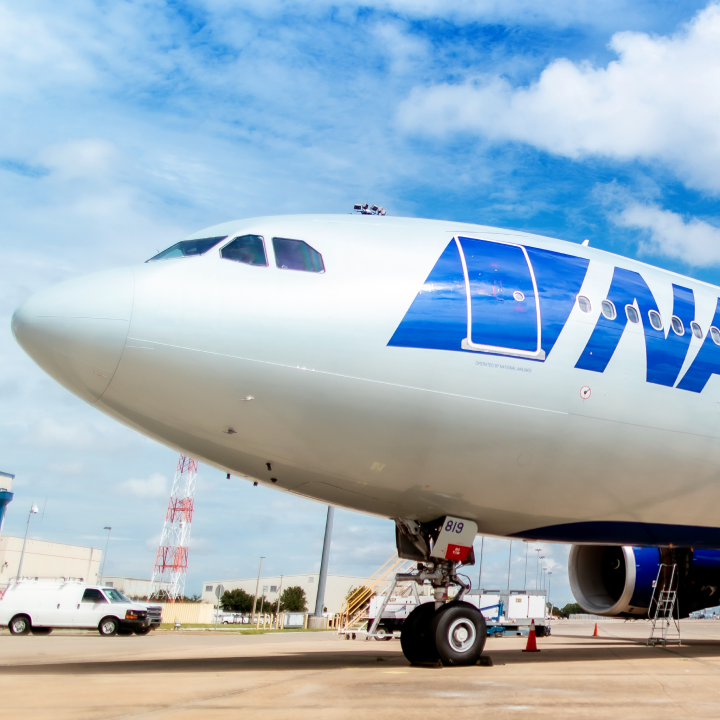

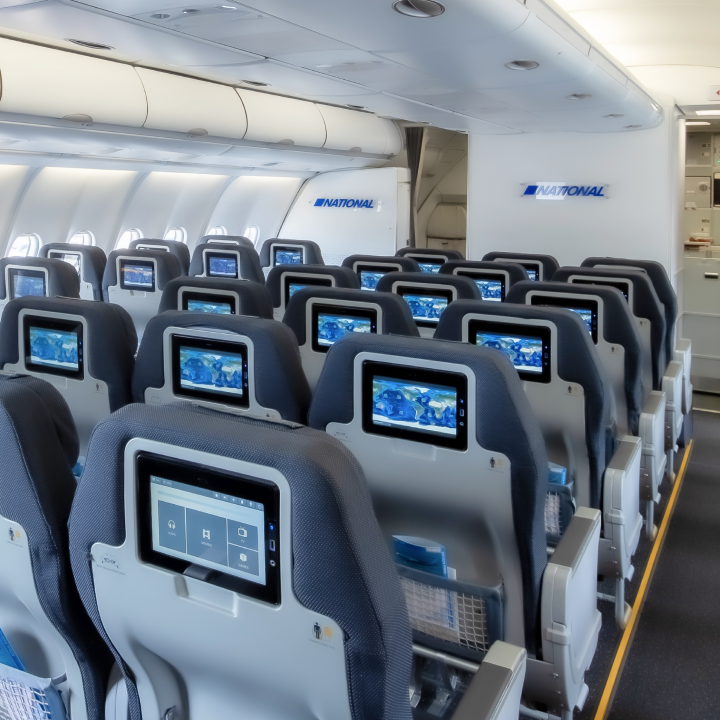

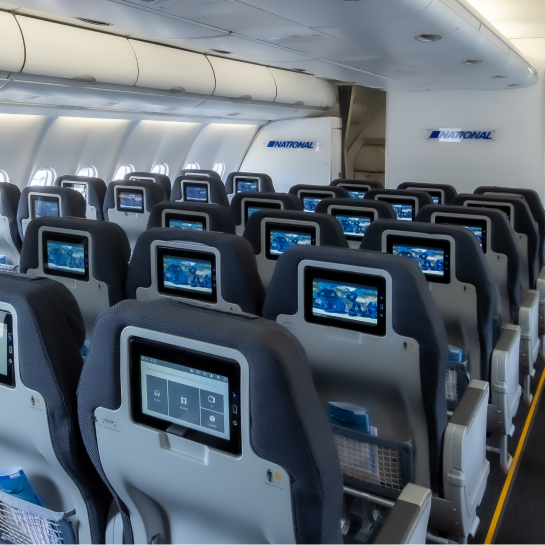

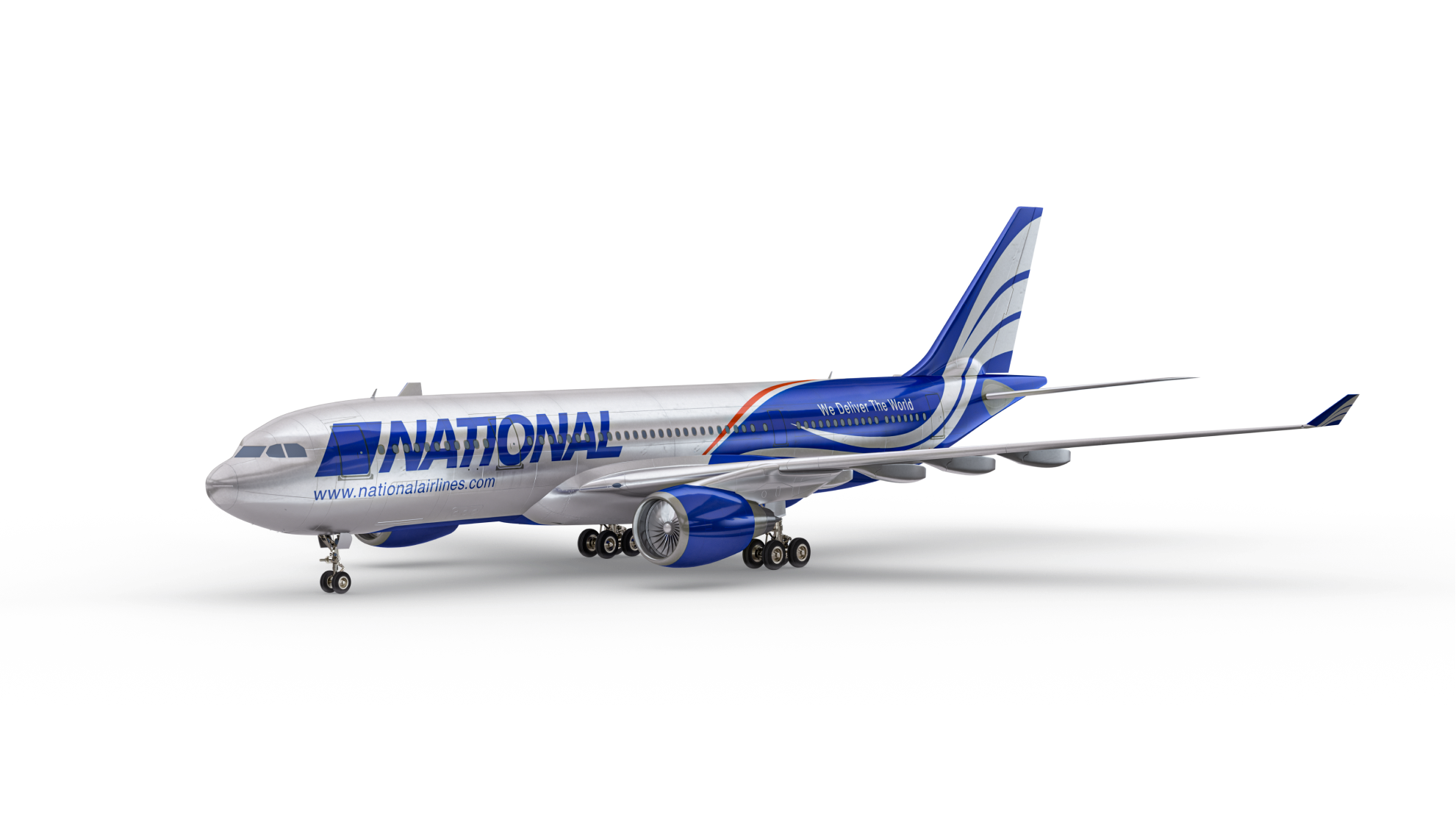

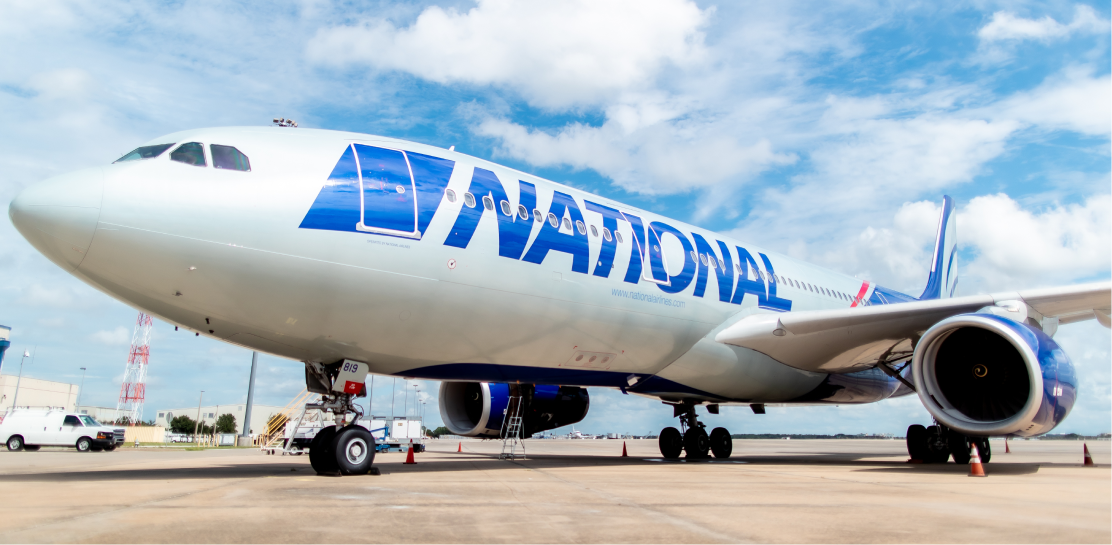

Airbus A330-200 N819CA

The A330-200 is National’s premium passenger aircraft with cutting-edge technology & fuel efficient mechanism, lessening environmental impact. From passengers charters to humanitarian missions, the A330 flies elite sports teams, business executives, holiday goers and military personnel, responding to humanitarian crisis across the globe. Our services also include passenger ACMI options. With a reliable and versatile operational capability and global netowrk, the A330 offers flexible travel schedules and plans as per our cutomers requirements.

configuration-plan
configuration-plan

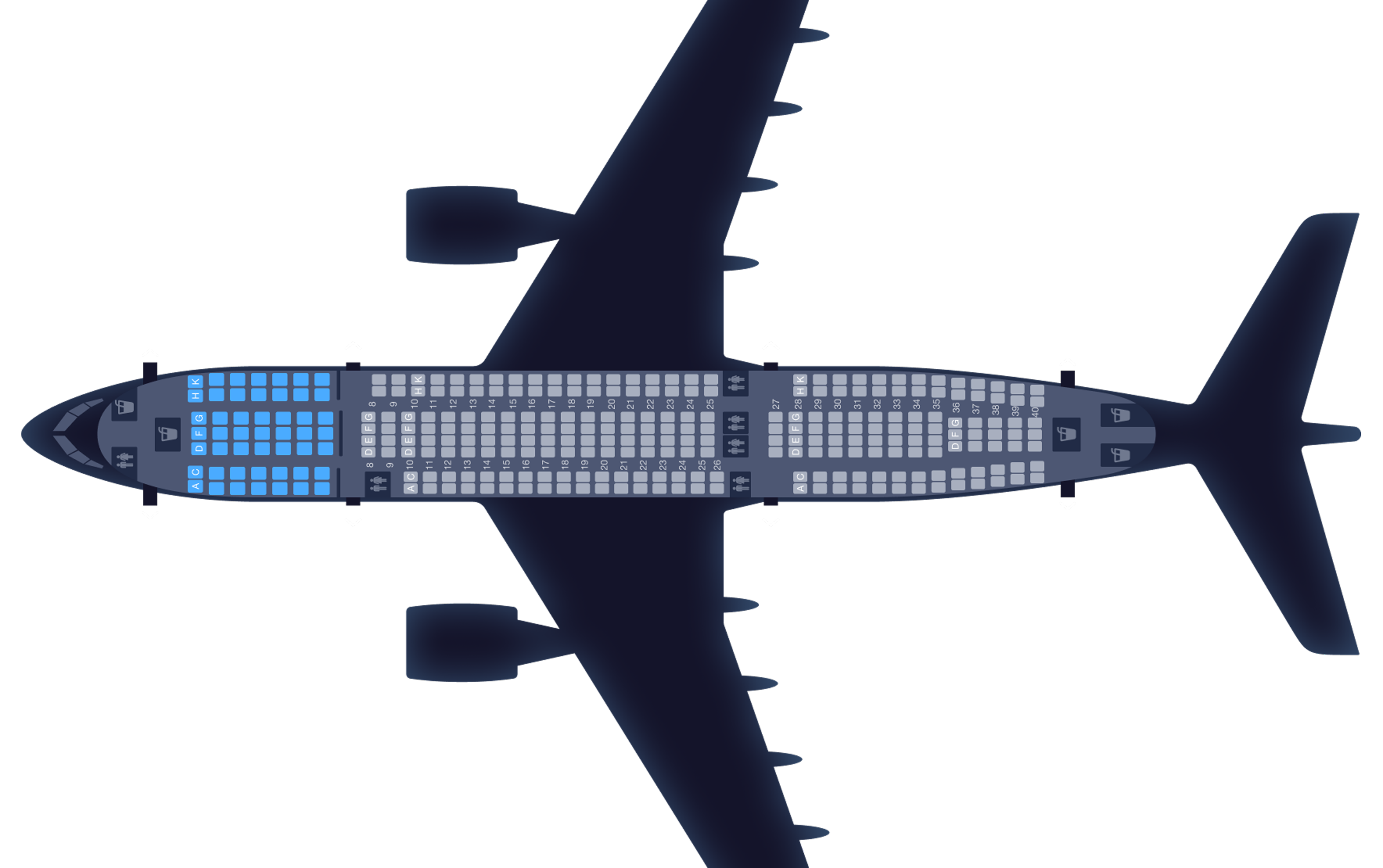

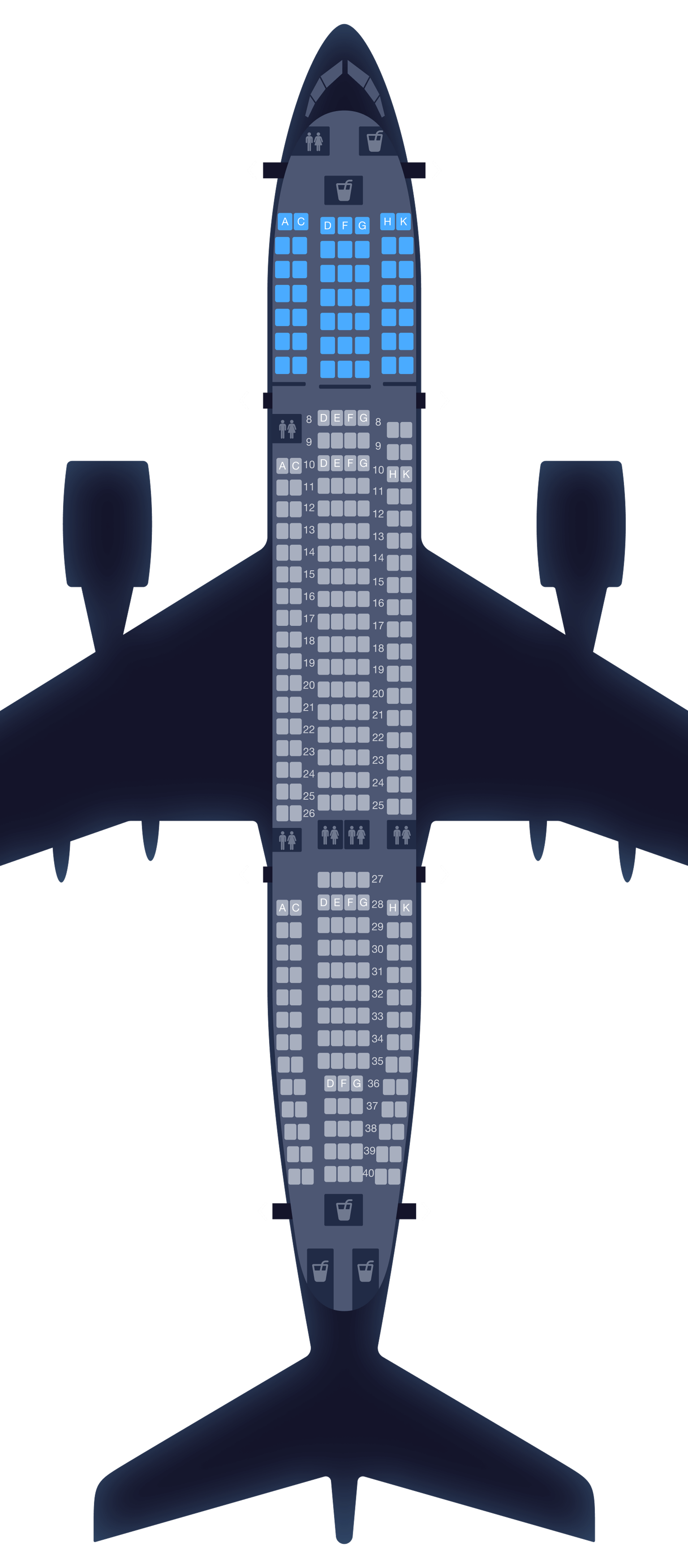

Seats configuration

Capacity

294 Seats

  Premium Economy: 49 (3" Pitch - 2x3x2)
  Economy: 245 (33" Pitch - 2x4x2)

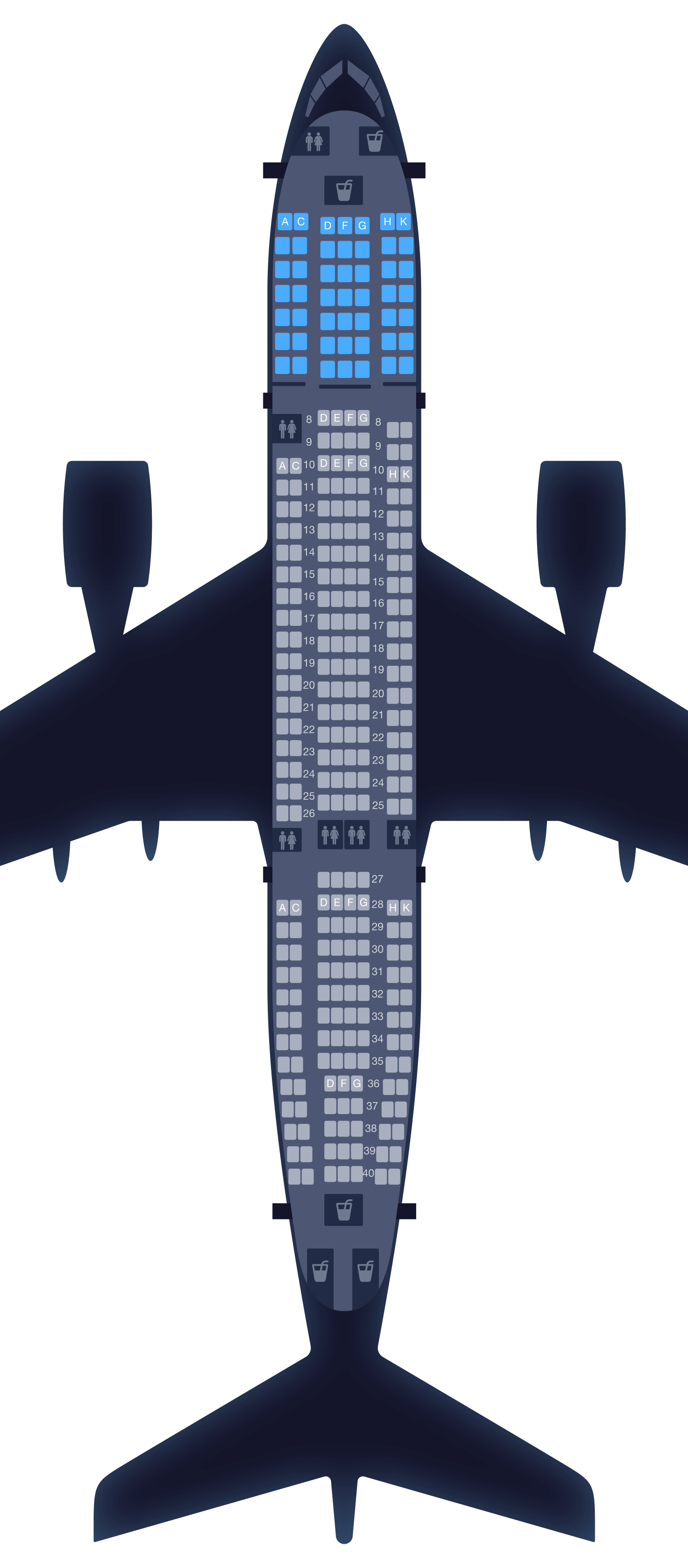

Seat Layout

*Seat capacity is subject to crew rest
requirement based on length of flight
